530IIT stainless steel ball valve RF ANSI300 1/2''
€186.50
(excl. btw)

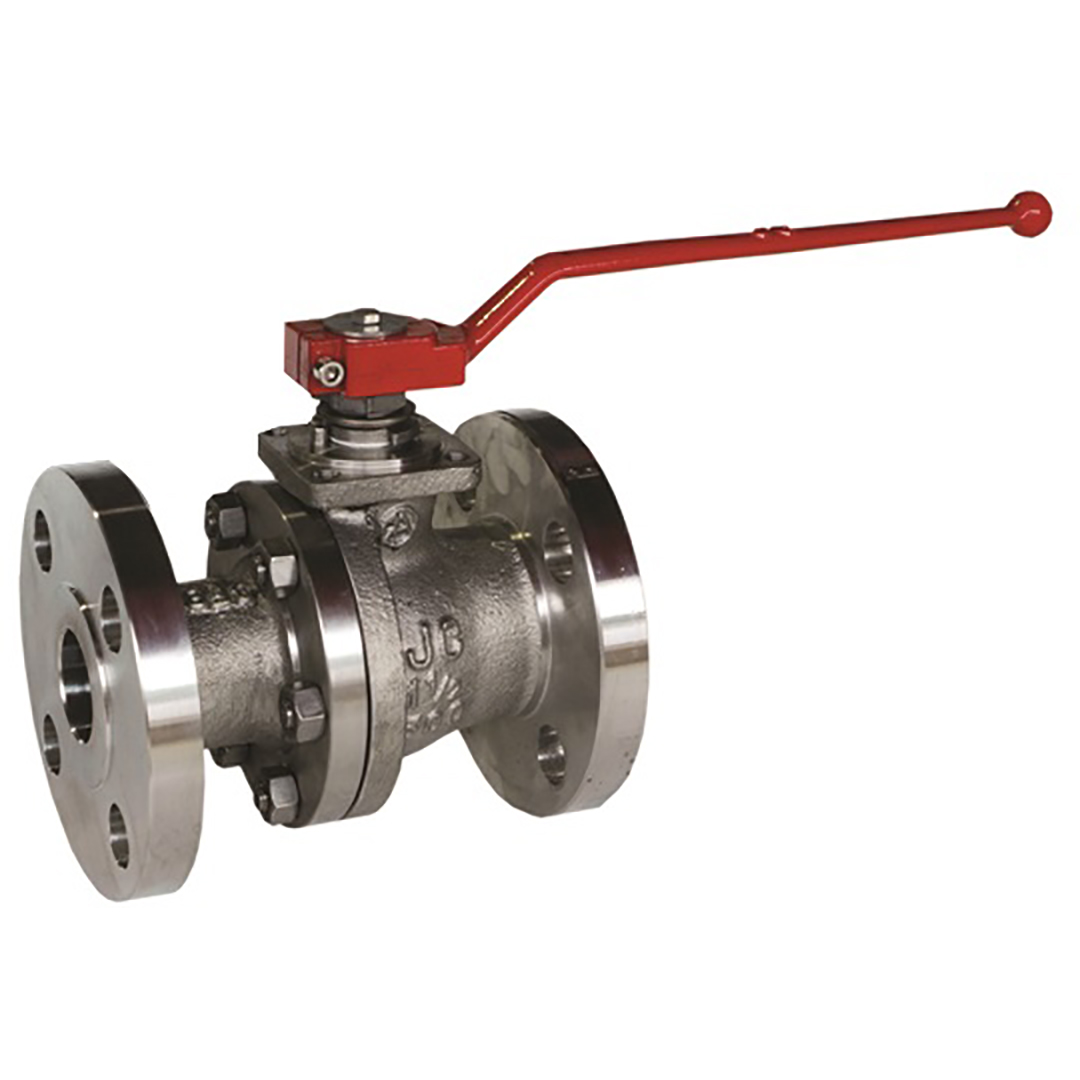

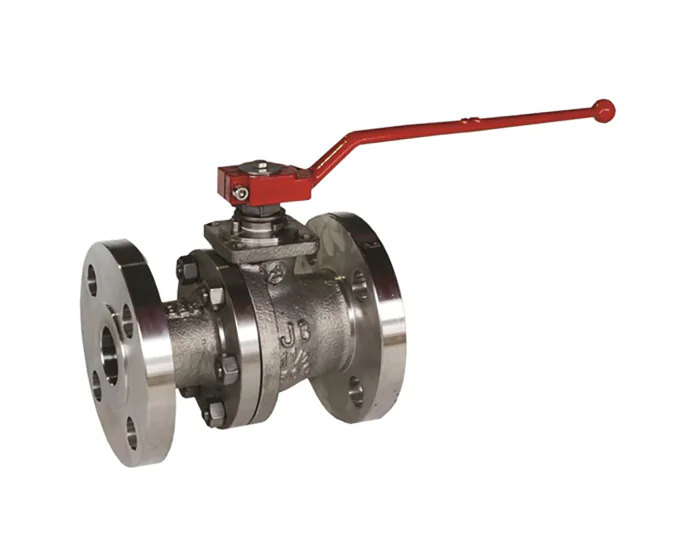

Discover the Sferaco 530IIT series ball valve, 2-piece body with flanges PN50 Class 300, stainless steel body and PTFE seat, full bore, fire safe for chemicals, petrochemicals, heating, air and water distribution
Specification
Value
DN inches NPS
1/2''
Option certificate 3.1
Yes
Construction standard
EN 1983 - ISO 17292 - ASME B16.34 - API 6D
CE risk category
IV Module H1
NACE MR0175
Yes
Fire safe standard
ISO 10497:2004. API 607 V5. API 6FA. BS 6755-2
SIL
SIL 3
EN face-to-face standard
EN 558 Series 4
ASME face-to-face standard
ASME B16.10
Face to face standard
EN 558 Series 4. ASME B16.10
Brand
JC VALVES
Tightness test standard
API 598
Stem sealing material
Graphite gland packing
Antistatic device
Yes
Steam
Yes
Degassing hole
Yes
Opening device
Handle
Fugitive emissions standard
ISO 15848-1 Class B. TA LUFT VDI 2440
Application
Industry
ATEX atmosphere
Group II Cat. 2G/2D
Shaft/stem matérial
Stainless steel ASTM A479 type 316
Square, star (mm)
MEP M12x9
ATEX compatible
Yes
Torque (Nm)
12
DN
DN15 - 1/2''
Face to Face (mm)
140
Fluid
Hydrocarbons. gas
Kv (m³/h)
20
Body material
Stainless steel CF8M (1.4408)
Number of ways
2
Bore
Full
ISO pad 5211
Yes
Packing gland
Yes
PS (bar)
50
Connections
Flanged #300 PN50
Seats
PTFE
Ball material
Stainless steel ASTM A479 Tp 316
TS max (°C)
230
TS min (°C)
-50
Ball valve design
Split body
ATEX zone
1 & 21. 2 & 22
Warranty period
5 years
CE
Yes
Handle material
Ductile iron
Handle type
Red lever
Fire safe
Yes
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
6775
Flanged #300 PN50 Stainless steel CF8M (1.4408) Full Split body DN15 - 1/2''
530IIT015
S1006978
€186.50
(excl. btw)
add to cart
6776
Flanged #300 PN50 Stainless steel CF8M (1.4408) Full Split body DN20 - 3/4''
530IIT020
S1006979
€237.54
(excl. btw)
add to cart
6777
Flanged #300 PN50 Stainless steel CF8M (1.4408) Full Split body DN25 - 1''
530IIT025
S1006980
€257.33
(excl. btw)
add to cart
6778
Flanged #300 PN50 Stainless steel CF8M (1.4408) Full Split body DN40 - 1''1/2
530IIT040
S1006981
€501.13
(excl. btw)
add to cart
6779
Flanged #300 PN50 Stainless steel CF8M (1.4408) Full Split body DN50 - 2''
530IIT050
S1006982
€620.94
(excl. btw)
add to cart
6780
Flanged #300 PN50 Stainless steel CF8M (1.4408) Full Split body DN80 - 3''
530IIT080
S1006983
€1,247.10
(excl. btw)
add to cart
6781
Flanged #300 PN50 Stainless steel CF8M (1.4408) Full Split body DN100 - 4''
530IIT100
S1006984
€1,990.99
(excl. btw)
add to cart
6782
Flanged #300 PN50 Stainless steel CF8M (1.4408) Full Split body DN150 - 6''
530IIT150
S1006985
€4,683.14
(excl. btw)
add to cart
6783
Flanged #300 PN50 Stainless steel CF8M (1.4408) Full Split body DN200 - 8''
530IIT200
S1006986
€8,820.21
(excl. btw)
add to cart
6784
Flanged #300 PN50 Stainless steel CF8M (1.4408) Full Split body DN250 - 10''
530IIT250
S1006987
€13,859.23
(excl. btw)
add to cart
6785
Flanged #300 PN50 Stainless steel CF8M (1.4408) Full Split body DN300 - 12''
530IIT300
S1006988
€23,129.23
(excl. btw)
add to cart
